复杂数字钟设计（7）–模块组装及硬件调试(PRX100-D)

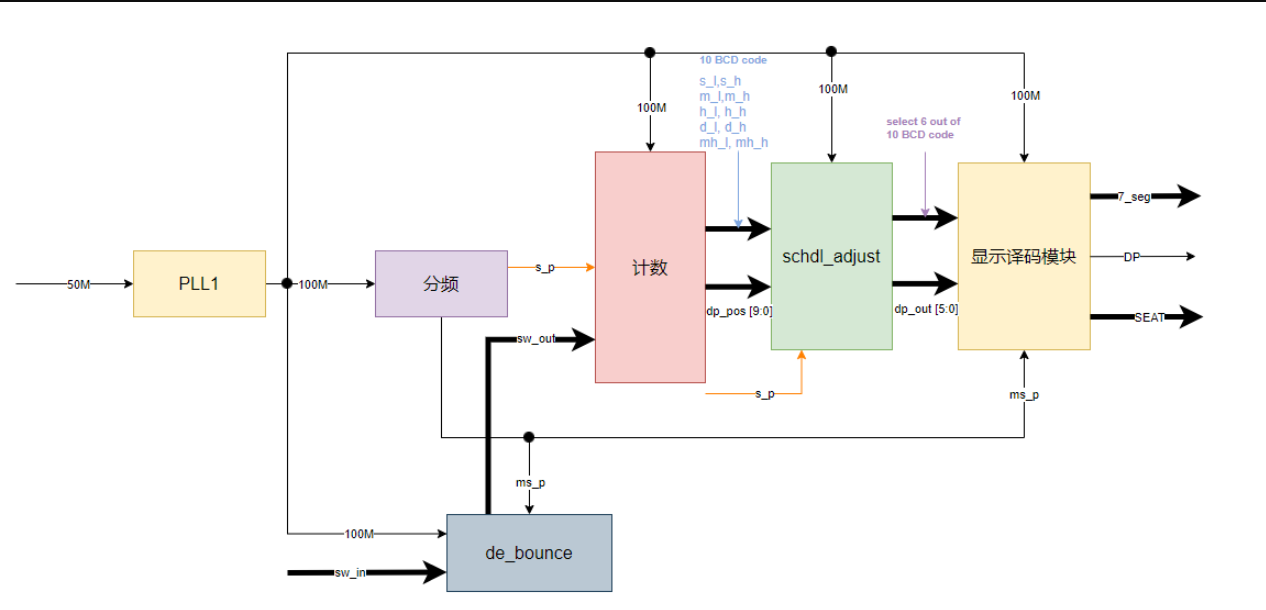

经过前面几个步骤的分析与设计，目前对于各个模块的抽象，封装以及各个模块之间接口与功能的划分已经非常清晰，把修改后的功能框图以及顶层的源代码重新呈现给大家。根据这两部分内容并结合PRX100-D硬件原理图组织硬件实验与调试。

图1

1.模块组装

在Vivado下新建工程见文章Vivado软件的使用 。移植复杂数字钟工程到Vivado需要注意以下几点：

• 仔细阅读硬件原理图，正确分配管脚，写入到*.xdc文件中。（PRA006和PRX100-D上按键的逻辑正好相反，详细见下图3。）
• 注意电平的兼容性
• IP核需要重新生成及例化

module complex_counter
(
    input inclk,
    input sw_in_l, sw_in_r, sw_in_p, sw_in_m,
    output [ 5: 0 ] SEAT,
    output DP,
    output [ 6: 0 ] SEVEN_SEG
);



wire pll_locked;
wire sys_clk;
wire rst = !pll_locked;

wire ms_p;
wire s_p;
wire [ 3: 0 ] s_l;
wire [ 3: 0 ] s_h;
wire [ 3: 0 ] m_l;
wire [ 3: 0 ] m_h;
wire [ 3: 0 ] h_l;
wire [ 3: 0 ] h_h;
wire [ 3: 0 ] d_l;
wire [ 3: 0 ] d_h;
wire [ 3: 0 ] mh_l;
wire [ 3: 0 ] mh_h;


wire [ 5: 0 ] dp_tmp;


wire [ 3: 0 ] seg_a;
wire [ 3: 0 ] seg_b;
wire [ 3: 0 ] seg_c;
wire [ 3: 0 ] seg_d;
wire [ 3: 0 ] seg_e;
wire [ 3: 0 ] seg_f;


wire sw_l;
wire sw_r;
wire sw_p;
wire sw_m;

wire [ 9: 0 ] dp_pos;



f_div f_div_inst
(
  .rst  ( rst ),
  .clk  ( sys_clk ),
  .ms_p ( ms_p ),
  .s_p  ( s_p )
);

sw_debounce sw_debounce_inst
(
    .rst        ( rst ),
    .clk        ( sys_clk ),
    .ms_p       ( ms_p ),
    .sw_in_l    ( sw_in_l ),
    .sw_in_r    ( sw_in_r ),
    .sw_in_p    ( sw_in_p ),
    .sw_in_m    ( sw_in_m ),

    .sw_out_l   ( sw_l ),
    .sw_out_r   ( sw_r ),
    .sw_out_p   ( sw_p ),
    .sw_out_m   ( sw_m )
);


count count_inst
(
    .rst        ( rst ),
    .clk        ( sys_clk ),
    .s_p        ( s_p ),

    .sw_in_l    ( sw_l ),
    .sw_in_r    ( sw_r ),
    .sw_in_p    ( sw_p ),
    .sw_in_m    ( sw_m ),

    .s_out_l    ( s_l ),
    .s_out_h    ( s_h ),
    .m_out_l    ( m_l ),
    .m_out_h    ( m_h ),
    .h_out_l    ( h_l ),
    .h_out_h    ( h_h ),
    .d_out_l    ( d_l ),
    .d_out_h    ( d_h ),
    .mh_out_l   ( mh_l ),
    .mh_out_h   ( mh_h ),
    .dp_out_pos ( dp_pos )

);


schdl_adjust schdl_adjust_inst
(
    .rst        ( rst ),
    .clk        ( sys_clk ),
    .s_p        ( s_p ),

    .dp_in_pos  ( dp_pos ),


    .s_in_l     ( s_l ),
    .s_in_h     ( s_h ),
    .m_in_l     ( m_l ),
    .m_in_h     ( m_h ),
    .h_in_l     ( h_l ),
    .h_in_h     ( h_h ),
    .d_in_l     ( d_l ),
    .d_in_h     ( d_h ),
    .mh_in_l    ( mh_l ),
    .mh_in_h    ( mh_h ),


    .dp_out     ( dp_tmp ),
    .seg_out_a  ( seg_a ),
    .seg_out_b  ( seg_b ),
    .seg_out_c  ( seg_c ),
    .seg_out_d  ( seg_d ),
    .seg_out_e  ( seg_e ),
    .seg_out_f  ( seg_f )

);


scan_dis_7seg scan_dis_7seg_inst
(
    .rst        ( rst ),
    .clk        ( sys_clk ),
    .ms_p       ( ms_p ),

    .seg_in_a   ( seg_a ),
    .seg_in_b   ( seg_b ),
    .seg_in_c   ( seg_c ),
    .seg_in_d   ( seg_d ),
    .seg_in_e   ( seg_e ),
    .seg_in_f   ( seg_f ),


    .dp_in      ( dp_tmp ),
    .SEAT       ( SEAT ),
    .DP         ( DP ),
    .seven_seg  ( SEVEN_SEG )

);




pll1 pll1_inst
(
    .areset     ( 1'b0 ),
    .inclk0     ( inclk ),
    .c0         ( sys_clk ),
    .locked     ( pll_locked )

);


endmodule

2.开发板FII-PRX100-D资源的使用

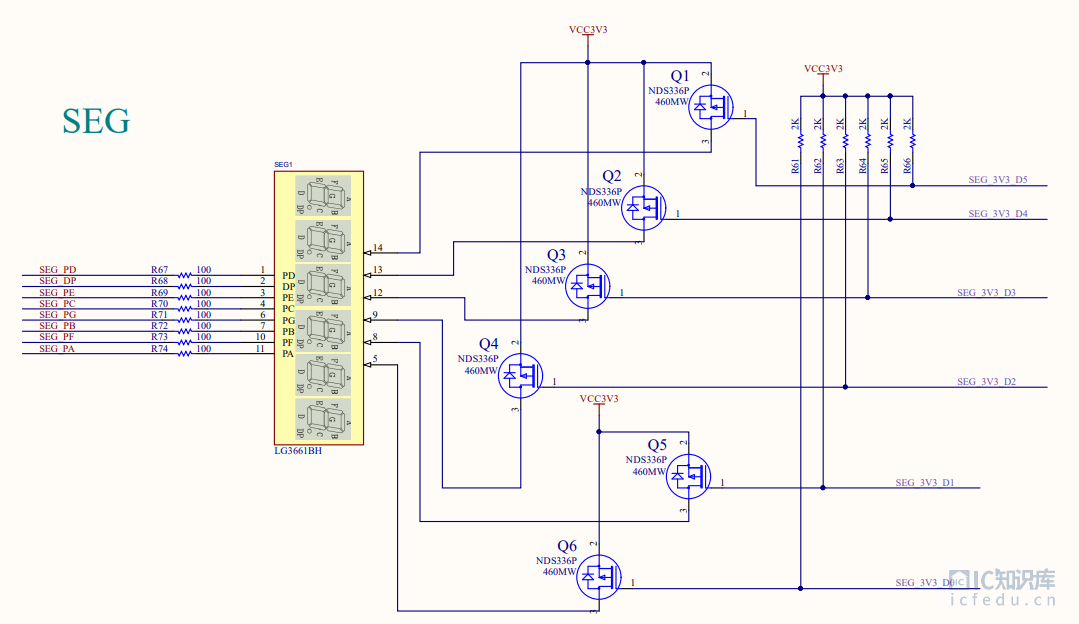

1. • 数码管，如图2

图2

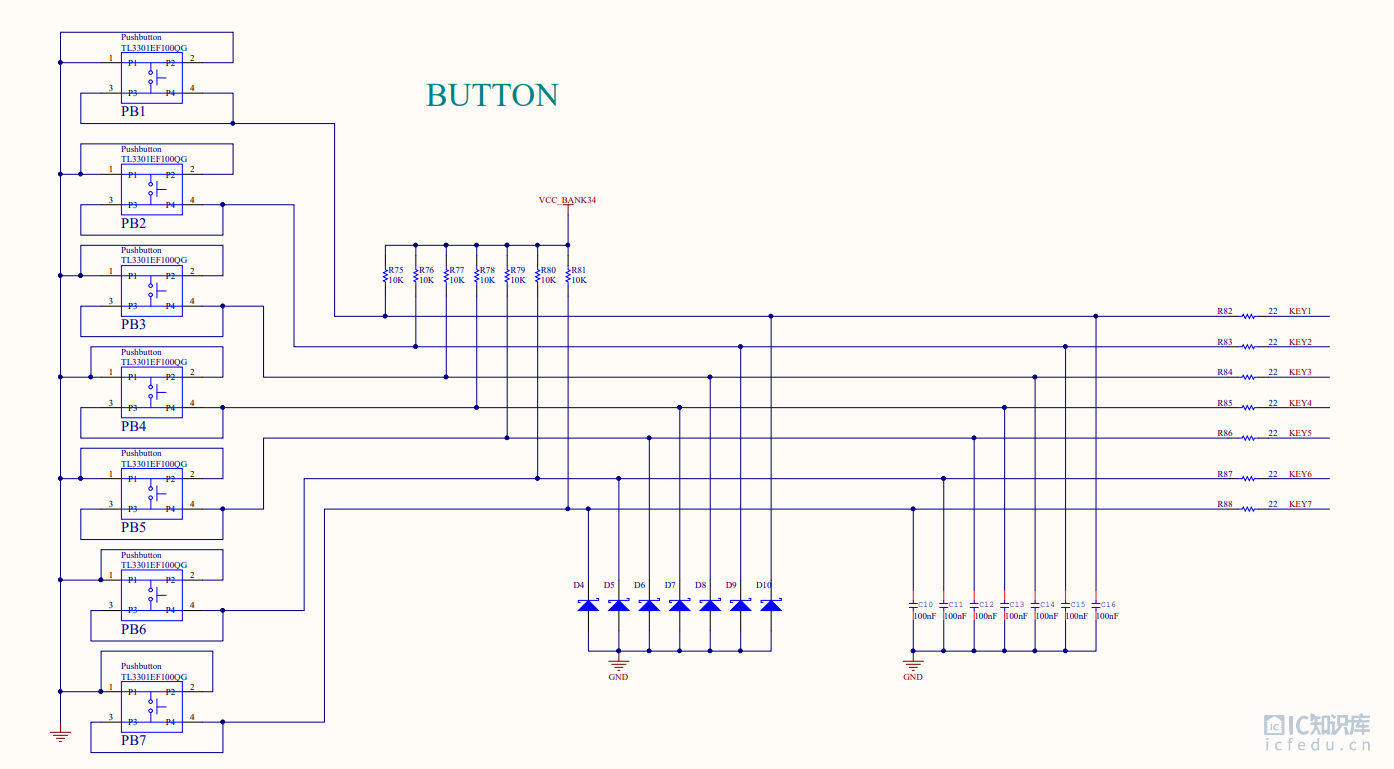

• 按键资源

图3

• 资源与FPGA管脚映射，如表1，

• 在工程中锁定管脚

Vivado的管脚约束文件如下：

####################################################################################

set_property -dict {PACKAGE_PIN D18 IOSTANDARD LVCMOS33} [get_ports inclk]
create_clock -period 20.000 -name inclk -waveform {0.000 10.000} [get_ports inclk]

####################################################################################

set_property -dict {PACKAGE_PIN L4 IOSTANDARD LVCMOS33} [get_ports sw_in_p]
set_property -dict {PACKAGE_PIN K5 IOSTANDARD LVCMOS33} [get_ports sw_in_l]
set_property -dict {PACKAGE_PIN P1 IOSTANDARD LVCMOS33} [get_ports sw_in_r]
set_property -dict {PACKAGE_PIN R7 IOSTANDARD LVCMOS33} [get_ports sw_in_m]


set_property -dict {PACKAGE_PIN K26 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[0]}]
set_property -dict {PACKAGE_PIN M20 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[1]}]
set_property -dict {PACKAGE_PIN L20 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[2]}]
set_property -dict {PACKAGE_PIN N21 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[3]}]
set_property -dict {PACKAGE_PIN N22 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[4]}]
set_property -dict {PACKAGE_PIN T24 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[5]}]
set_property -dict {PACKAGE_PIN P23 IOSTANDARD LVCMOS33} [get_ports {SEVEN_SEG[6]}]
set_property -dict {PACKAGE_PIN P24 IOSTANDARD LVCMOS33} [get_ports DP]

set_property -dict {PACKAGE_PIN R16 IOSTANDARD LVCMOS33} [get_ports {SEAT[5]}]
set_property -dict {PACKAGE_PIN R17 IOSTANDARD LVCMOS33} [get_ports {SEAT[4]}]
set_property -dict {PACKAGE_PIN N18 IOSTANDARD LVCMOS33} [get_ports {SEAT[3]}]
set_property -dict {PACKAGE_PIN K25 IOSTANDARD LVCMOS33} [get_ports {SEAT[2]}]
set_property -dict {PACKAGE_PIN R25 IOSTANDARD LVCMOS33} [get_ports {SEAT[1]}]
set_property -dict {PACKAGE_PIN P21 IOSTANDARD LVCMOS33} [get_ports {SEAT[0]}]

• 重新编译complex_counter 工程并下载，调试。

扩展设计：

1.  添加年份计数及显示。
2. 添加闰年计算，调整2月的天数。
3. 添加蜂鸣器，实现整点报时（PRX100-D），蜂鸣器的使用请参照蜂鸣器实验。
