WIFI 加扰及解扰生成多项式及Verilog实现

802.11b中采用7位移位寄存器作为加扰及解扰的主题移位寄存器，加扰和解扰是自同步的乘性加扰和解扰。其生成多项式为G（X）=X⁷ + X⁴ +1，根据上节内容可以画出乘性加扰及解扰的LFSR (Linear Feedback Shift Register)时序逻辑图，如图1和图2所示。

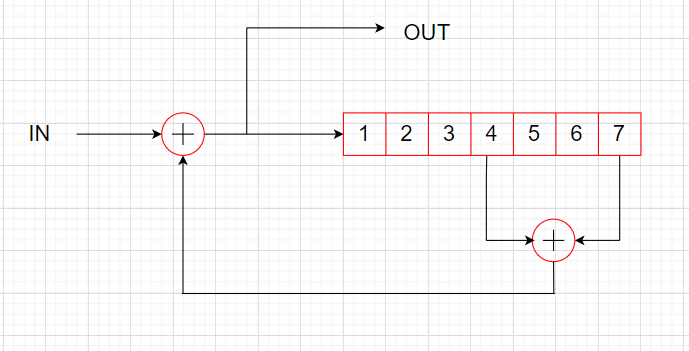

图1  7位乘性加扰器

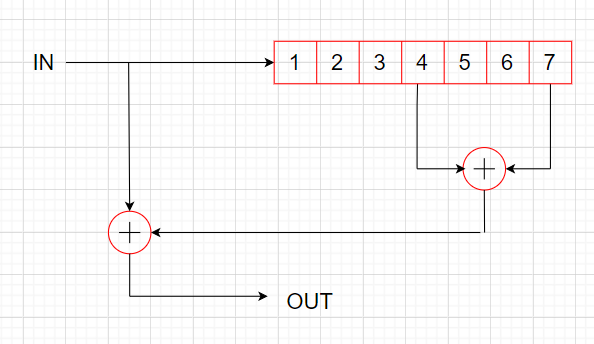

图2 自同步7位乘性解扰器

图1，图2的Verilog RTL  代码如下：

1.  加扰器Verilog 代码：

module scrambler
(
    input  clock ,       // Clock input of the design
    input  rst ,         // active high, synchronous Reset input
    input  enable ,      // Active high enable signal
    input  bit_in,       // Input data bit.
    output reg bit_out   // Scrambled output bit.
);

reg [ 6: 0 ] scb_bit ;
always @ ( posedge clock or posedge rst )
    if ( rst )
        bit_out <= 1'b0;
    else
        bit_out <= ( bit_in ^ scb_bit[ 6 ] ^ scb_bit[ 3 ] );


//注意乘性加扰LFSR寄存器不能初始化全1，其它都可以
always @ ( posedge clock or posedge rst )
    if ( rst )
    begin

        scb_bit <= 7'b0000000;  //Zeroed start. Might be common?
        //scb_bit <= 7'b1010101;  //Striped start.
        //scb_bit <=  7'b1000101;  //Striped start.
        //scb_bit <=  7'b1111111;  //Illegal start. 非法初始化
    end
    else if ( enable == 1'b1 )
    begin
        scb_bit <= { scb_bit[ 5：0 ] ， bit_out };
    end
endmodule

2. 解扰器Verilog代码：

module descrambler
(
    input clock ,        // Clock input of the design
    input rst ,          // active high, asynchronous Reset input
    input enable ,       // Active high enable signal
    input bit_in,        // Input data bit.
    output reg bit_out   // Scrambled output bit.
);

reg [ 6: 0 ] scb_bit ;

always @ ( posedge clock or posedge rst )
    if ( rst )
    begin
        scb_bit <= #1 7'b0000000;
    end
    else if ( enable )
    begin
        scb_bit <= { scb_bit[ 5: 0 ], bit_in };
    end


always @ ( posedge clock or posedge rst )
    if ( rst )
        bit_out <= 1'b0;
    else
        bit_out <= ( bit_in ^ scb_bit[ 6 ] ^ scb_bit[ 3 ] );

endmodule
