在讲解清楚了通信分层的概念和PCS子层编码后，由于发送端的PCS子层采用8b/10b编码，因此接收端的对应层也要采用相同的解码方式。通信工程的各个分层如图1所示。
图1 高速通信分层的概念
本节内容除了添加了PCS子层外，还将整个工程接收部分的代码做了较大修改，使得工程中的层次更加分明，但要注意各个层之间的握手。各层的代码如下：
１. 接收端PMD层
这段代码和以前的代码一样，只是文件名做了修改，体现了该代码所在的层次。本层的任务是完成LVDS到单端信号的变换，并将接收 bit流通过本地时钟过采样，进行相位自适应调整，同步到本地时钟域。
module recv_bit_pmd
(
input rst,
input clk_400M , //400Hz
input rx,
output reg rx_bit,
output reg rx_bit_rdy,
output reg rx_r, //r---register
output reg rx_rr, //rr--- rx_r registerd
output reg rx_dg //dg----double (dual) edge, 上升沿或下降沿
);
////=========rx_xx[0]^rx_xx[1]==1,dual edge
wire rx_out;
reg rx_rrr;
reg [ 1: 0 ] sample_count = 0;
always@( posedge clk_400M or posedge rst )
if ( rst )
begin
rx_r <= 0;
rx_rr <= 0;
rx_rrr <= 0;
rx_dg <= 0;
end
else
begin
rx_r <= rx_out;
rx_rr <= rx_r;
rx_rrr <= rx_rr;
rx_dg <= rx_r ^ rx_rr; //dual edge
end
always@( posedge clk_400M or posedge rst )
if ( rst )
begin
rx_bit_rdy <= 0;
rx_bit <= 0;
sample_count <= 0;
end
else
begin
rx_bit_rdy <= 0;
if ( sample_count == 2 ) //0， 1 ，2 ，3 ，0，1，2，3.。。。
begin
rx_bit <= rx_rrr; //
rx_bit_rdy <= 1'b1;
end
if ( rx_dg ) // 2 3 0 0
begin
sample_count <= 0;
end
else
begin
sample_count <= sample_count + 1'b1;
end
end
IO_RX IO_RX_inst
(
.rx_in ( rx ),
.rx_out ( rx_out )
);
endmodule
2. 接收端PMA层代码
本层代码由于采用了8b/10b编码的方式，按照约定，发送端的PCS子层封装数据包时采用Ｋ28.5作为帧start，K28.1作为帧end (stop)。由于8b/10b的优良特性，Ｋ28.5和K28.1是8b/10b中的逗号，在编码码字中含有连续的5个0或5个1， 而且码字在整个串行流是惟一的。因此可以直接捕获Ｋ28.5和K28.1的10-bit数据代替Preamble + SFD作为同步字使用。其它的如寄存器移位，异步时钟的转换等，见上几个章节的介绍。最终输出3个信号rx_data_100Mr, rx_data_rdy_100Mr, rx_data_vld_pma用于与上层的握手。见仿真波形图2，3 ，4。
module recv_data_pma
#(
parameter SYNC_START1 = 10'b0011111010, //K28.5 with dipin=0;
parameter SYNC_START2 = 10'b1100000101, //K28.5 with dispin=1
parameter SYNC_END1 = 10'b0011111001, //K28.1 with dipin=0;
parameter SYNC_END2 = 10'b1100000110 //K28.1 with dispin=1
)
(
input rst,
input clk_100M ,
input clk_400M ,
input rx,
output reg[ 9: 0 ] rx_data_100Mr,
output reg rx_data_rdy_100Mr,
output reg rx_data_vld_pma
);
wire rx_bit;
wire rx_bit_rdy;
reg [ 3: 0 ] bit_count;
reg [ 9: 0 ] bit_sft;
reg fr_sync1;
reg fr_sync;
reg fr_end;
reg[ 9: 0 ] rx_data;
reg rx_data_rdy;
always@( posedge clk_400M or posedge rst )
if ( rst )
begin
rx_data <= 0;
rx_data_rdy <= 0;
bit_count <= 0;
bit_sft <= 0;
fr_sync1 <= 0;
fr_sync <= 0;
fr_end <= 0;
end
else
begin
if ( rx_bit_rdy )
bit_sft <= { bit_sft[ 8: 0 ], rx_bit };
if ( fr_end )
fr_sync1 <= 1'b0;
else if ( ( bit_sft == SYNC_START1 ) || ( bit_sft == SYNC_START2 ) )
fr_sync1 <= 1'b1;
if ( fr_end )
fr_sync <= 1'b0;
else if ( fr_sync1 & rx_bit_rdy )
fr_sync <= 1'b1;
if ( fr_end )
bit_count <= 0;
else if ( fr_sync )
begin
if ( rx_bit_rdy )
begin
if ( bit_count == 9 )
bit_count <= 0;
else
bit_count <= bit_count + 1;
end
end
rx_data_rdy <= 0;
if ( bit_count == 9 )
begin
rx_data <= bit_sft;
rx_data_rdy <= 1'b1;
end
fr_end <= 1'b0;
if ( ( bit_sft == SYNC_END1 ) || ( bit_sft == SYNC_END2 ) )
fr_end <= 1'b1;
end
reg rx_data_rdy_r;
reg [ 5: 0 ] count_400M;
reg rx_data_rdy_x;
reg nrx_data_rdy_x;
reg rx_data_rdy_xrg;
always@( posedge clk_400M or posedge rst )
if ( rst )
begin
count_400M <= 0;
rx_data_rdy_r <= 0;
end
else
begin
if ( rx_data_rdy )
rx_data_rdy_r <= 1'b1;
else if ( count_400M == 19 )
rx_data_rdy_r <= 1'b0;
if ( count_400M == 19 )
count_400M <= 0;
else if ( rx_data_rdy_r )
count_400M <= count_400M + 1;
end
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_data_rdy_x <= 1'b0;
nrx_data_rdy_x <= 1'b1;
rx_data_rdy_xrg <= 1'b0;
rx_data_100Mr <= 0;
rx_data_rdy_100Mr <= 1'b0;
end
else
begin
rx_data_rdy_x <= rx_data_rdy_r;
nrx_data_rdy_x <= !rx_data_rdy_x;
rx_data_rdy_xrg <= nrx_data_rdy_x & rx_data_rdy_x;
rx_data_rdy_100Mr <= 1'b0;
if ( rx_data_rdy_xrg )
begin
rx_data_100Mr <= rx_data;
rx_data_rdy_100Mr <= 1'b1;
end
end
reg rx_data_vld_x;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_data_vld_pma <= 0;
end
else
begin
rx_data_vld_x <= fr_sync;
rx_data_vld_pma <= rx_data_vld_x;
end
recv_bit_pmd recv_bit_pmd_inst
(
.rst ( rst ),
.clk_400M ( clk_400M ),
.rx ( rx ),
.rx_bit ( rx_bit ),
.rx_bit_rdy ( rx_bit_rdy )
);
endmodule

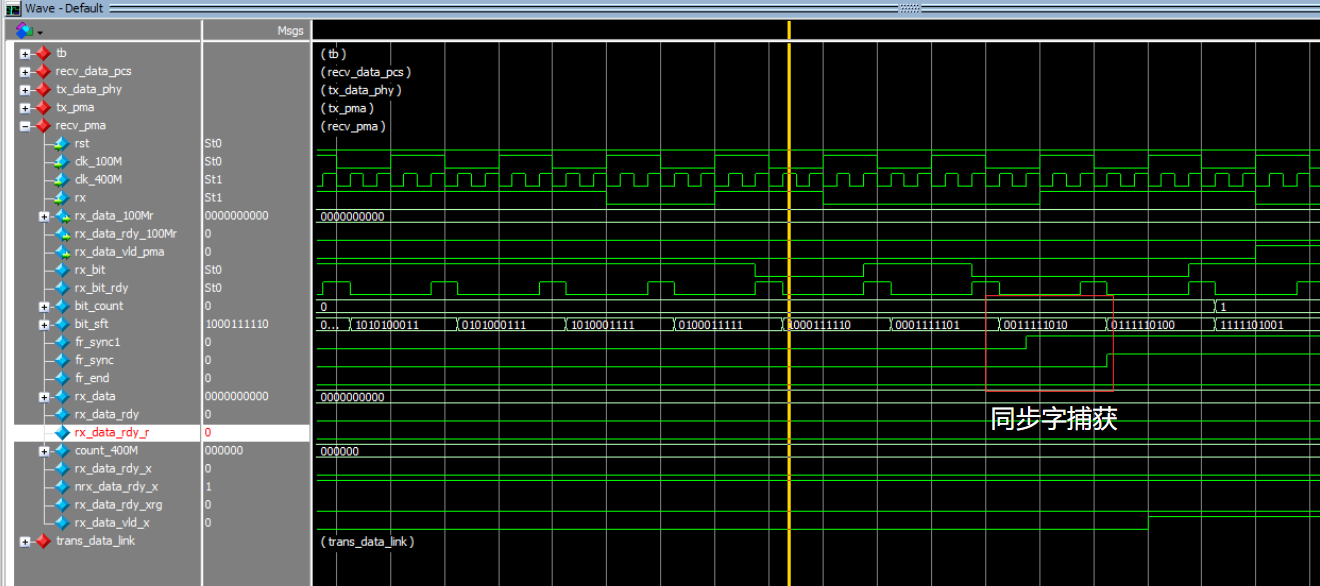

图2 PMA层同步字（K28.5)捕获

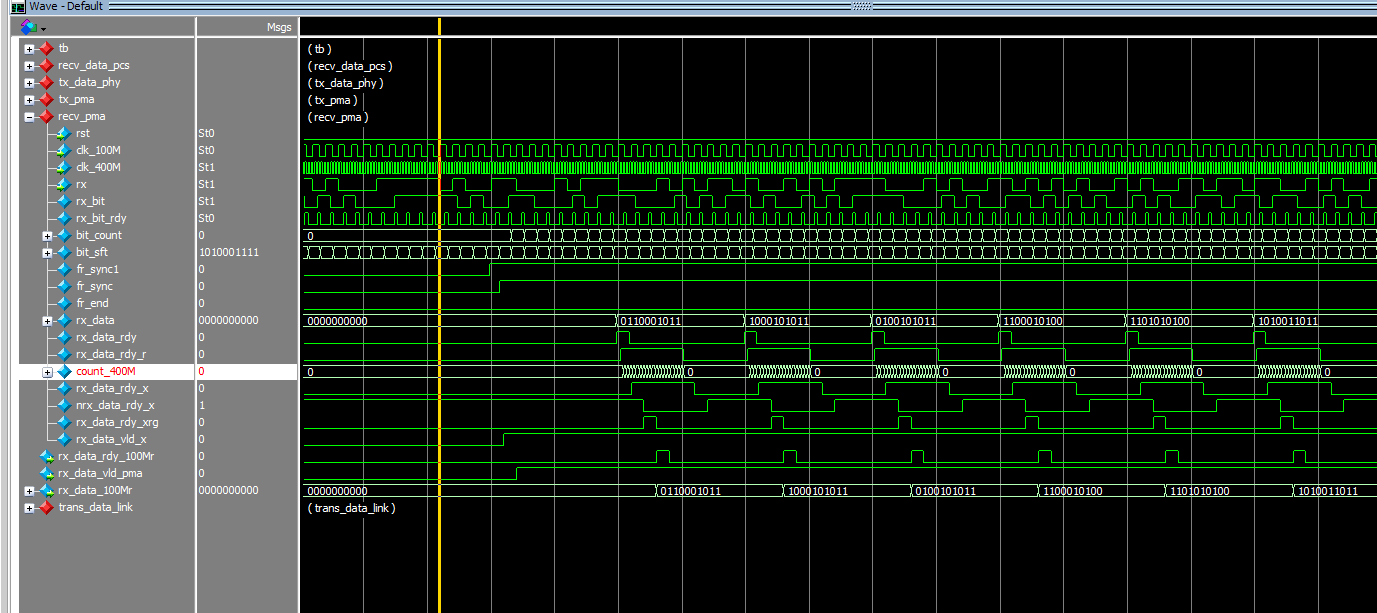

图3 PMA层的时钟域转换及握手信号

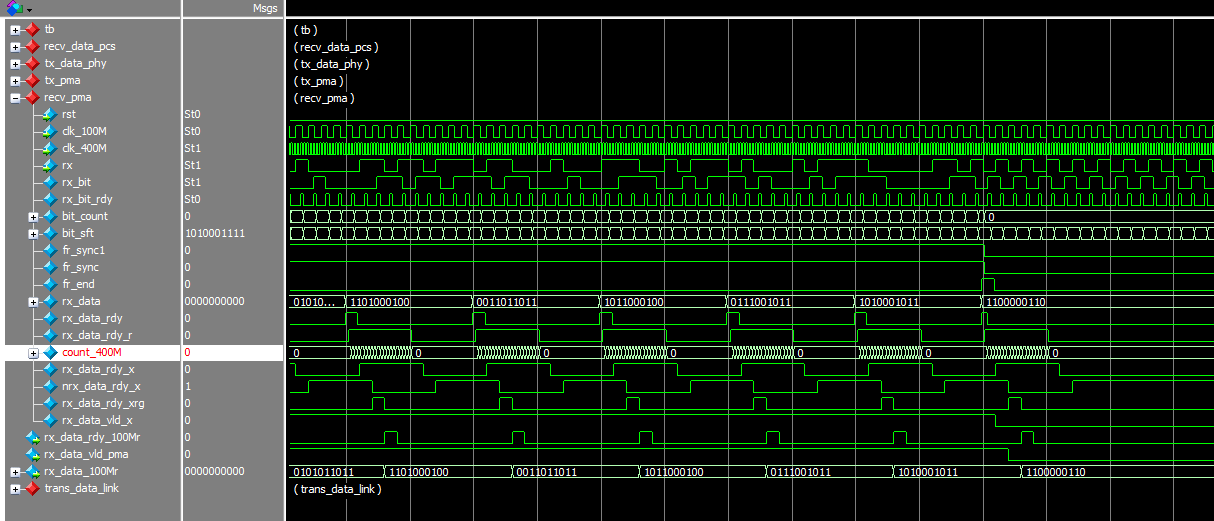

图4 PMA层的时钟域转换及握手信号
3. 接收端PCS代码
module recv_data_pcs
#(
parameter SYNC_START1 = 10'b0011111010, //K28.5 with dipin=0;
parameter SYNC_START2 = 10'b1100000101, //K28.5 with dispin=1
parameter SYNC_END1 = 10'b0011111001, //K28.1 with dipin=0;
parameter SYNC_END2 = 10'b1100000110 //K28.1 with dispin=1
)
(
input rst,
input clk_100M ,
input clk_400M ,
input rx,
output reg pcs_ko,
output reg[ 7: 0 ] pcs_rx_data,
output reg pcs_rx_data_rdy,
output reg pcs_rx_data_vld
);
wire code_err;
wire disp_err;
wire [ 7: 0 ] dataout;
wire dispout;
wire ko;
wire rx_data_rdy_100M;
wire rx_data_vld_pma;
wire [ 9: 0 ] rx_data_100M;
reg dispin;
reg [ 9: 0 ] rx_data_100M_r;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
pcs_rx_data_vld <= 0;
end
else
pcs_rx_data_vld <= rx_data_vld_pma;
reg [ 1: 0 ] pcs_rx_st;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_data_100M_r <= 0;
dispin <= 0;
pcs_ko <= 0;
pcs_rx_data <= 0;
pcs_rx_data_rdy <= 0;
pcs_rx_st <= 0;
end
else
case ( pcs_rx_st )
0:
begin
//rx_data_100M_r<=0;
//dispin <=0;
pcs_ko <= 0;
pcs_rx_data <= 0;
pcs_rx_data <= 0;
pcs_rx_data_rdy <= 0;
if ( rx_data_vld_pma )
pcs_rx_st <= 1;
end
1:
begin
pcs_rx_data_rdy <= 0;
if ( rx_data_rdy_100M )
begin
rx_data_100M_r <= rx_data_100M;
pcs_rx_st <= 2;
end
else if ( !rx_data_vld_pma )
pcs_rx_st <= 0;
end
2:
begin
pcs_ko <= ko;
pcs_rx_data <= dataout;
dispin <= dispout;
pcs_rx_data_rdy <= 1'b1;
if ( !rx_data_vld_pma )
pcs_rx_st <= 0;
else
pcs_rx_st <= 1;
end
default:
pcs_rx_st = 0;
endcase
decode_10b8b decode_10b8b_inst
(
.datain ( rx_data_100M_r ),
.dispin ( dispin ),
.ko ( ko ),
.dataout ( dataout ),
.dispout ( dispout ),
.code_err ( code_err ),
.disp_err ( disp_err )
) ;
recv_data_pma
#(
.SYNC_START1 ( SYNC_START1 ), //K28.5 with dipin=0;
.SYNC_START2 ( SYNC_START2 ), //K28.5 with dispin=1
.SYNC_END1 ( SYNC_END1 ), //K28.5 with dipin=0;
.SYNC_END2 ( SYNC_END2 ) //K28.5 with dispin=1
)
recv_data_pma_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.clk_400M ( clk_400M ),
.rx ( rx ),
.rx_data_100Mr ( rx_data_100M ),
.rx_data_rdy_100Mr ( rx_data_rdy_100M ),
.rx_data_vld_pma ( rx_data_vld_pma )
);
endmodule
接收端的数据链路层没有添加 Preamble + SFD 以及FCS， 因此数据链路层的数据和PCS的代码一致，后续课程中会添加相关的应用，进而逐步完善通信工程。握手及10b/8b的转换见图5，6，7。

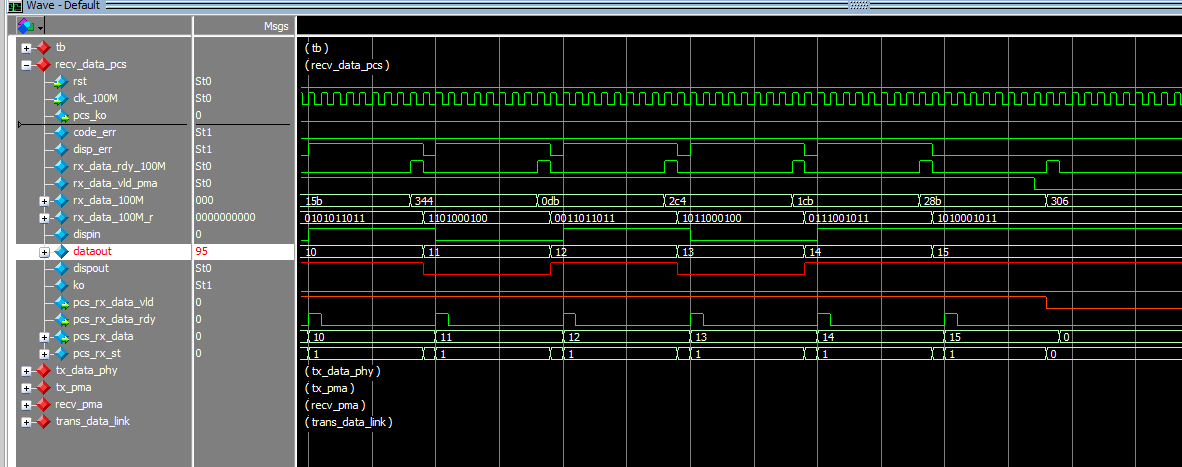

图5 PCS层的时钟域转换及握手信号

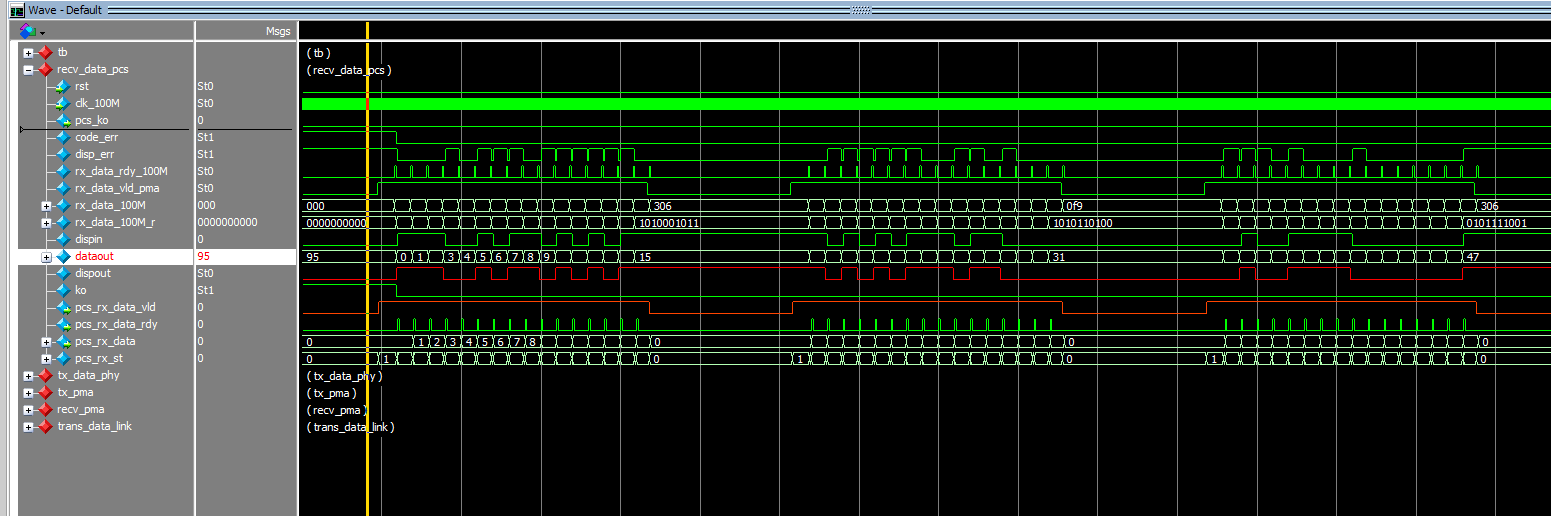

图6 PCS层的时钟域转换及握手信号

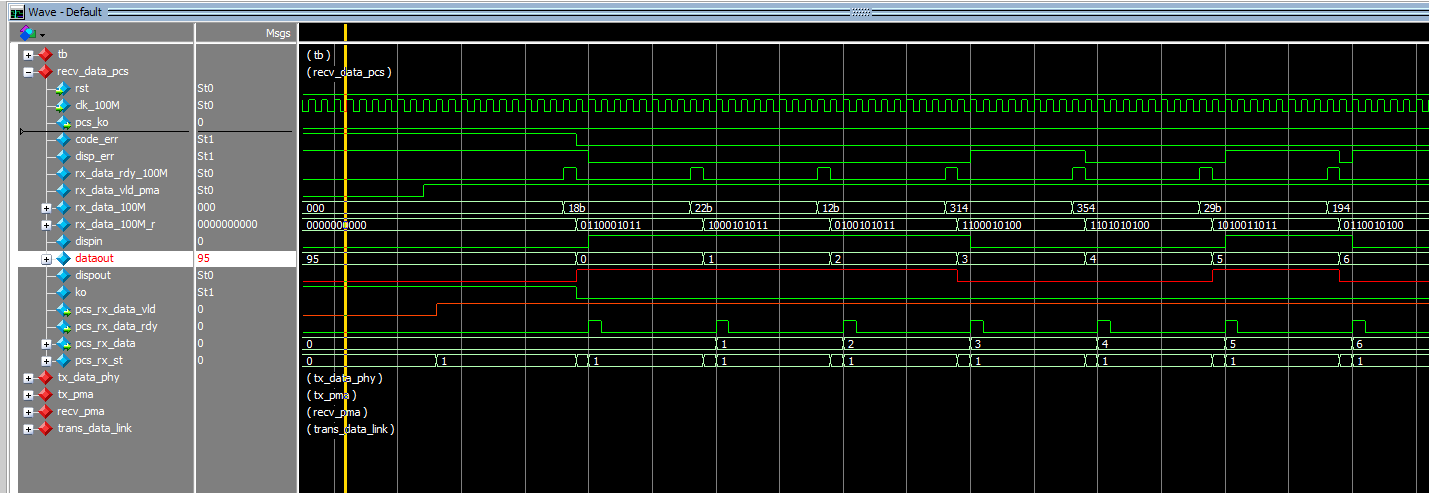

图7 PCS层的时钟域转换及握手信号
由于文章中无法详细展示代码设计及仿真中的细节，如果想了解细节请参照对应视频。
工程代码（quartus 20.1）：
