在串行高速通信的发送端加入乒乓Buffer缓冲后，经过仿真可以看出，的确有效的缓解了异步过程中数据突发性，随机性与过程调度的冲突。同时也打破了数据链路层与应用层的紧耦合的逻辑，降低了设计的复杂度。在接收端也面临同样的问题，因此也需要加入乒乓Buffer机制有效缓冲调度机制带来的压力。在本高速通信的案例工程中，经研究在接收端，乒乓Buffer仍然插入到应用层与数据链路层之间是最合适的。
1. 乒乓Buffer例化
由于在数据接收端依然使用TDP RAM， 而且两边都是16位接口，因此直接使用发送端生成的TDP RAM进行例化即可，不需要重新生成新的IP。数据链路层的 乒乓Buffer例化如下：
tx_pingpong_buffer rx_pingpong_buffer_inst
(
//====================================a port, being connected app layer
.clock_a ( clk_100M ),
.address_a ( rx_addr_a ),
.rden_a ( 1'b1 ),
.wren_a ( rx_en_a ),
.data_a ( 16'b0),
.q_a ( rx_q_a ),
//====================================b port,
.clock_b ( clk_100M ),
.address_b ( rx_addr_b ),
.rden_b ( 1'b1 ),
.wren_b ( rx_wren_b ),
.data_b ( 16'b0 ),
.q_b ( rx_q_b )
);
其中双端口RAM的b端口用于和物理层（Phy）做接口， 而a端口用于与应用层的接口。
2. 数据链路层的程序设计
参照数据缓冲与乒乓Buffer 的交换机制，以及与物理层的握手机制，数据链路层代码如下：
module recv_data_link #
(
parameter SYNC_START1 = 10'b0011111010, //K28.5 with dipin=0;
parameter SYNC_START2 = 10'b1100000101, //K28.5 with dispin=1
parameter SYNC_END1 = 10'b0011111001, //K28.1 with dipin=0;
parameter SYNC_END2 = 10'b1100000110 //K28.1 with dispin=1
)
(
input rst,
input clk_100M ,
input clk_400M ,
input rx,
input [ 10: 0 ] app_rx_addr_a,
input app_rx_wren_a,
output[ 15: 0 ] app_rx_q_a
);
wire link_ko;
wire link_rx_data_rdy;
wire [ 7: 0 ] link_rx_data;
wire link_rx_data_vld;
reg [ 9: 0 ] rx_addr_b_r;
reg rx_pinpong;
wire [ 10: 0 ] rx_addr_b = { rx_pinpong, rx_addr_b_r };
wire [ 15: 0 ] rx_q_b;
reg [ 15: 0 ] rx_data_b;
reg [ 10: 0 ] rx_num_b;
reg rx_wren_b;
reg [ 2: 0 ] link_rx_st;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_addr_b_r <= 1023;
rx_pinpong <= 0;
rx_data_b <= 0;
rx_wren_b <= 0;
rx_num_b <= 0;
link_rx_st <= 0;
end
else
case ( link_rx_st )
0:
begin
rx_addr_b_r <= 1023;
rx_pinpong <= 0;
rx_data_b <= 0;
rx_wren_b <= 0;
rx_num_b <= 0;
link_rx_st <= 1;
end
1:
begin
link_rx_st <= 2;
end
2:
begin
if ( ~rx_q_b[ 15 ] && ~link_rx_data_vld )
link_rx_st <= 3;
end
3:
begin
if ( link_rx_data_vld )
link_rx_st <= 4;
end
4:
begin
rx_wren_b <= 0;
if ( !link_rx_data_vld )
begin
link_rx_st <= 6;
end
else if ( link_rx_data_rdy )
begin
rx_num_b <= rx_num_b + 1'b1;
// rx_addr_b_r <=rx_addr_b_r+1'b1;
rx_data_b[ 7: 0 ] <= link_rx_data;
link_rx_st <= 5;
end
end
5:
begin
rx_wren_b <= 0;
if ( !link_rx_data_vld )
begin
rx_addr_b_r <= rx_addr_b_r + 1'b1;
rx_wren_b <= 1;
link_rx_st <= 6;
end
else if ( link_rx_data_rdy )
begin
rx_num_b <= rx_num_b + 1'b1;
rx_data_b[ 15: 8 ] <= link_rx_data;
rx_addr_b_r <= rx_addr_b_r + 1'b1;
rx_wren_b <= 1'b1;
link_rx_st <= 4;
end
end
6:
begin
rx_wren_b <= 1;
rx_addr_b_r <= 1023;
rx_data_b <= { 1'b1, 4'b0000, rx_num_b };
link_rx_st <= 7;
end
7:
begin
rx_wren_b <= 0;
rx_pinpong <= rx_pinpong + 1'b1;
rx_num_b <= 0;
link_rx_st <= 1;
end
default:
link_rx_st <= 0;
endcase
tx_pingpong_buffer rx_pingpong_buffer_inst
(
//====================================a port, being connected app layer
.clock_a ( clk_100M ),
.address_a ( app_rx_addr_a ),
.rden_a ( 1'b1 ),
.wren_a ( app_rx_wren_a ),
.data_a ( 16'b0 ),
.q_a ( app_rx_q_a ),
//====================================b port,
.clock_b ( clk_100M ),
.address_b ( rx_addr_b ),
.rden_b ( 1'b1 ),
.wren_b ( rx_wren_b ),
.data_b ( rx_data_b ),
.q_b ( rx_q_b )
);
recv_data_pcs #
(
.SYNC_START1( 10'b0011111010 ), //K28.5 with dipin=0;
.SYNC_START2( 10'b1100000101 ), //K28.5 with dispin=1
.SYNC_END1 ( 10'b0011111001 ), //K28.1 with dipin=0;
.SYNC_END2 ( 10'b1100000110 ) //K28.1 with dispin=1
)
recv_data_pcs_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.clk_400M ( clk_400M ),
.rx ( rx ),
.pcs_rx_data_rdy( link_rx_data_rdy ),
.pcs_ko ( link_ko ),
.pcs_rx_data ( link_rx_data ),
.pcs_rx_data_vld( link_rx_data_vld )
);
endmodule
2. 顶层修改后的文件
module hs_txrx
#(
parameter IDLE = 10'b1010_1010_10
)
(
input inclk,
input pll_rst,
input [ 10: 0 ] tx_addr,
input [ 15: 0 ] tx_data,
input tx_en,
output[ 15: 0 ] tx_q,
output tx,
input rx,
input [10:0]app_rx_addr_a,
input app_rx_wren_a,
output[15:0]app_rx_q_a,
output clk_100M,
output pll_locked
);
wire clk_400M;
wire rst = !pll_locked;
trans_data_link
#(
.IDLE( IDLE )
)
trans_data_link_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.tx_addr_a ( tx_addr ),
.tx_data_a ( tx_data ),
.tx_en_a ( tx_en ),
.tx_q_a ( tx_q ),
.tx_out ( tx )
);
recv_data_link #
(
.SYNC_START1( 10'b0011111010 ), //K28.5 with dipin=0;
.SYNC_START2( 10'b1100000101 ), //K28.5 with dispin=1
.SYNC_END1 ( 10'b0011111001 ), //K28.1 with dipin=0;
.SYNC_END2 ( 10'b1100000110 ) //K28.1 with dispin=1
)
recv_data_link_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.clk_400M ( clk_400M ),
.rx ( rx ),
.app_rx_addr_a (app_rx_addr_a),
.app_rx_wren_a (app_rx_wren_a),
.app_rx_q_a (app_rx_q_a)
);
pll1 pll1_inst
(
.areset ( pll_rst ), //1'b0;
.inclk0 ( inclk ),
.c0 ( clk_100M ),
.c1 ( clk_400M ),
.locked ( pll_locked )
);
endmodule
4.应用层程序
应用层的代码（这里用仿真程序模拟应用层程序）
`timescale 1 ns / 1 ps
module tb_pinpong
( );
parameter [ 10: 0 ] LEN = 17;
parameter PERIOD = 20 ; //周期20
parameter IDLE = 10'b1010_1010_10;
reg inclk ; // 模拟板级提供的输入时钟
initial
begin
inclk = 1'b0;
#( PERIOD / 2 );
forever
#( PERIOD / 2 ) inclk = ~inclk;
end
reg pll_rst; //实体模块PLL的rst信号
wire tx_rx; // 收发在testbench的回环信号
wire clk_100M;
wire pll_locked; //实体PLL锁定信号
wire rst = !pll_locked; //Testbench内生成复位信号
reg [ 9: 0 ] tx_addr_r;
reg tx_pinpong;
wire [ 10: 0 ] tx_addr = { tx_pinpong, tx_addr_r };
reg [ 15: 0 ] tx_data; //待发送数据
reg [ 7: 0 ] tx_data_r;
reg tx_en;
wire [ 15: 0 ] tx_q;
reg [ 9: 0 ] app_rx_addr_r;
reg app_rx_pingpong;
wire [ 10: 0 ] app_rx_addr_a = { app_rx_pingpong, app_rx_addr_r };
reg app_rx_wren_a;
wire [ 15: 0 ] app_rx_q_a;
reg [ 10: 0 ] rev_len;
reg rx_data_vld;
reg [ 15: 0 ] app_rx_data;
reg [ 7: 0 ] frame_len;
reg [ 2: 0 ] tx_st;
initial
begin
pll_rst = 1'b1;
#50 pll_rst = 1'b0;
end
//=====================================schedule for multi_task or multi_procedure ;
reg tx_rdy; //master schedule and authorise tx precudure become active stream.
reg tx_rdy_ack;
reg rx_rdy;
reg rx_rdy_ack;
reg [ 2: 0 ] sch_st; //mimic master schedule,
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
tx_rdy <= 0;
rx_rdy <= 0;
sch_st <= 0;
end
else
case ( sch_st )
0:
begin
tx_rdy <= 1'b1;
if ( tx_rdy_ack )
begin
tx_rdy <= 1'b0;
sch_st <= 1;
end
end
1:
begin
rx_rdy <= 1'b1;
if ( rx_rdy_ack )
begin
rx_rdy <= 1'b0;
sch_st <= 2;
end
end
2:
begin
sch_st <= 3;
end
3:
begin
sch_st <= 4;
end
4:
begin
sch_st <= 5;
end
5:
begin
sch_st <= 6;
end
6:
begin
sch_st <= 7;
end
7:
begin
sch_st <= 0;
end
default:
sch_st <= 0;
endcase
wire [ 7: 0 ] tx_data_p = tx_data_r + 1;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
frame_len <= 0;
tx_addr_r <= 1023;
tx_pinpong <= 0;
tx_data <= 0;
tx_data_r <= 0;
tx_en <= 1'b0;
tx_rdy_ack <= 0;
tx_st <= 0;
end
else
begin
case ( tx_st )
0:
begin
tx_addr_r <= 1023;
tx_pinpong <= 0;
tx_data <= 0;
tx_rdy_ack <= 0;
frame_len <= 0;
tx_st <= 1;
end
1:
begin
tx_rdy_ack <= 0;
if ( tx_rdy )
tx_st <= 2;
end
2:
begin
if ( tx_q[ 15 ] )
tx_st <= 6;
else
tx_st <= 3;
end
3:
begin
if ( frame_len >= LEN )
begin
tx_en <= 1'b0;
tx_st <= 4;
end
else
begin
tx_data <= { tx_data_p, tx_data_r };
frame_len <= frame_len + 2;
tx_addr_r <= tx_addr_r + 1;
tx_data_r <= tx_data_r + 2;
tx_en <= 1'b1;
end
end
4:
begin
tx_data <= { 1'b1, 4'b0, LEN };
frame_len <= 0;
tx_addr_r <= 1023;
tx_en <= 1'b1;
tx_st <= 5;
end
5:
begin
tx_en <= 1'b0;
tx_pinpong <= tx_pinpong + 1'b1;
tx_st <= 6;
end
6:
begin
tx_rdy_ack <= 1'b1;
tx_st <= 7;
end
7:
begin
tx_rdy_ack <= 1'b0;
tx_st <= 1;
end
default:
tx_st <= 0;
endcase
end
reg [ 2: 0 ] rx_st;
reg [ 10: 0 ] rx_length;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_rdy_ack <= 1'b0;
app_rx_addr_r <= 1023;
app_rx_pingpong <= 0;
app_rx_wren_a <= 0;
rev_len <= 0;
rx_length <= 0;
rx_data_vld <= 0;
app_rx_data <= 0;
rx_st <= 0;
end
else
case ( rx_st )
0:
begin
rx_rdy_ack <= 1'b0;
app_rx_addr_r <= 1023;
app_rx_wren_a <= 0;
rev_len <= 0;
rx_length <= 0;
rx_data_vld <= 0;
app_rx_data <= 0;
if ( rx_rdy )
rx_st <= 1;
end
1:
begin
rx_st <= 2;
end
2:
begin
if ( app_rx_q_a[ 15 ] )
begin
app_rx_addr_r <= 0;
rx_st <= 3;
end
else
begin
rx_st <= 7;
rx_rdy_ack <= 1'b1;
end
end
3:
begin
rev_len <= app_rx_q_a[ 10: 0 ];
rx_length <= app_rx_q_a[ 10: 0 ];
app_rx_addr_r <= app_rx_addr_r + 1;
rx_st <= 4;
end
4:
begin
rx_data_vld <= 1'b0;
app_rx_data <= app_rx_q_a;
if ( rev_len <= 1 )
begin
rx_st <= 5;
rx_data_vld <= rev_len[ 0 ];
end
else
begin
rev_len <= rev_len - 2;
app_rx_addr_r <= app_rx_addr_r + 1;
rx_data_vld <= 1'b1;
end
end
5:
begin
app_rx_addr_r <= 1023;
app_rx_wren_a <= 1'b1;
rx_data_vld <= 1'b0; //modified after simulation
rx_st <= 6;
end
6:
begin
app_rx_pingpong <= app_rx_pingpong + 1;
app_rx_wren_a <= 1'b0;
rx_st <= 7;
rx_rdy_ack <= 1'b1;
end
7:
begin
rx_rdy_ack <= 1'b0;
app_rx_wren_a <= 1'b0;
rx_st <= 0;
end
default:
rx_st <= 0;
endcase
hs_txrx #( .IDLE( IDLE ) )
hs_txrx_inst
(
.inclk ( inclk ),
.pll_rst ( pll_rst ),
.tx_addr ( tx_addr ),
.tx_data ( tx_data ),
.tx_en ( tx_en ),
.tx_q ( tx_q ),
.tx ( tx_rx ),
.rx ( tx_rx ),
.app_rx_addr_a ( app_rx_addr_a ),
.app_rx_wren_a ( app_rx_wren_a ),
.app_rx_q_a ( app_rx_q_a ),
.clk_100M ( clk_100M ),
.pll_locked ( pll_locked )
);
endmodule
新的应用程序只展示了应用层读数据的过程，并在该程序中加了新的调度。
5.仿真波形：

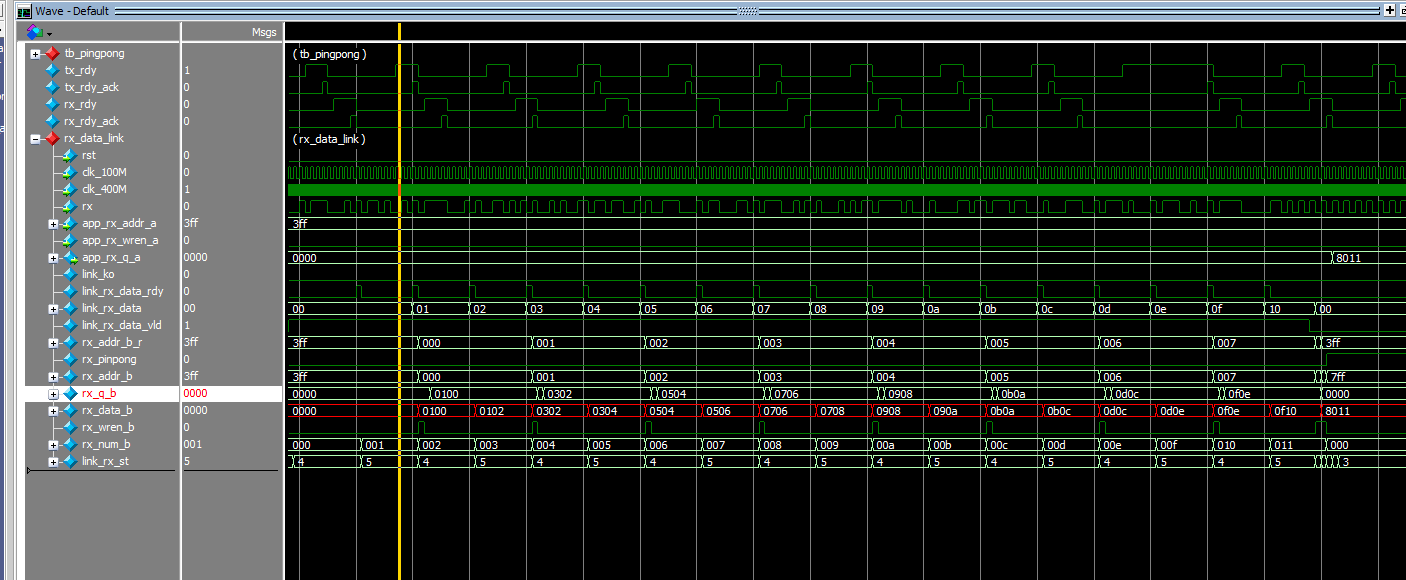

图1-1 数据链路层仿真波形1
观察双口RAM b端口的控制字的值，数据链路层与物理层的握手。

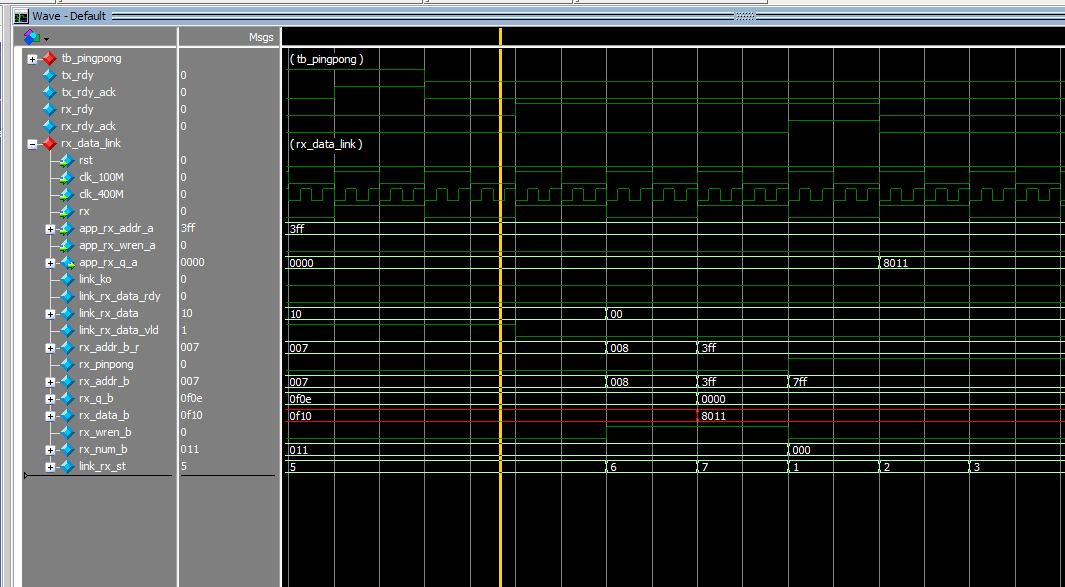

图1-2 数据链路层仿真波形2
图1-2中注意观察写关键字的情况以及乒乓Buffer的交换。

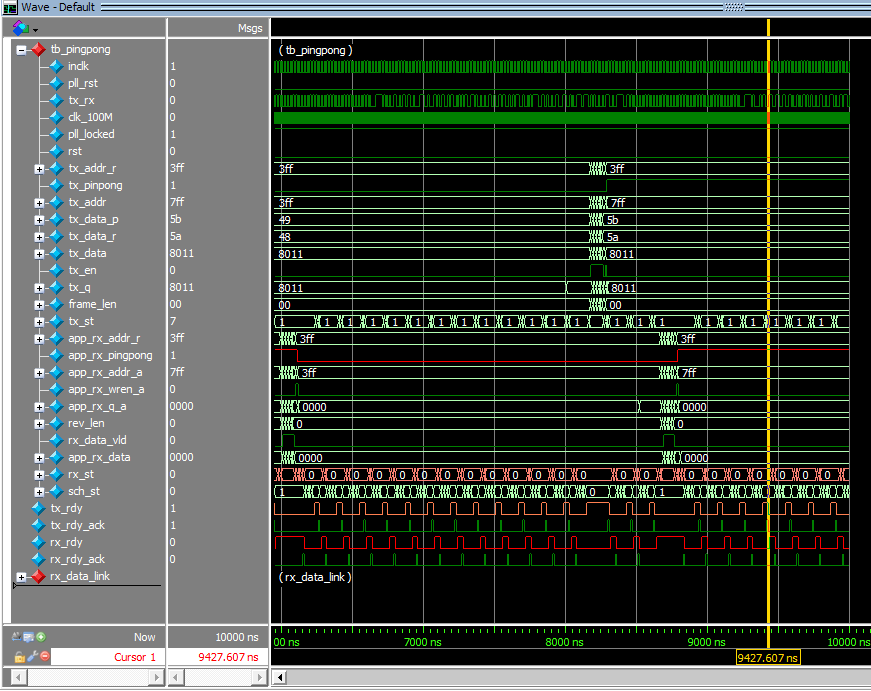

图2-1 观察调度的时间分配

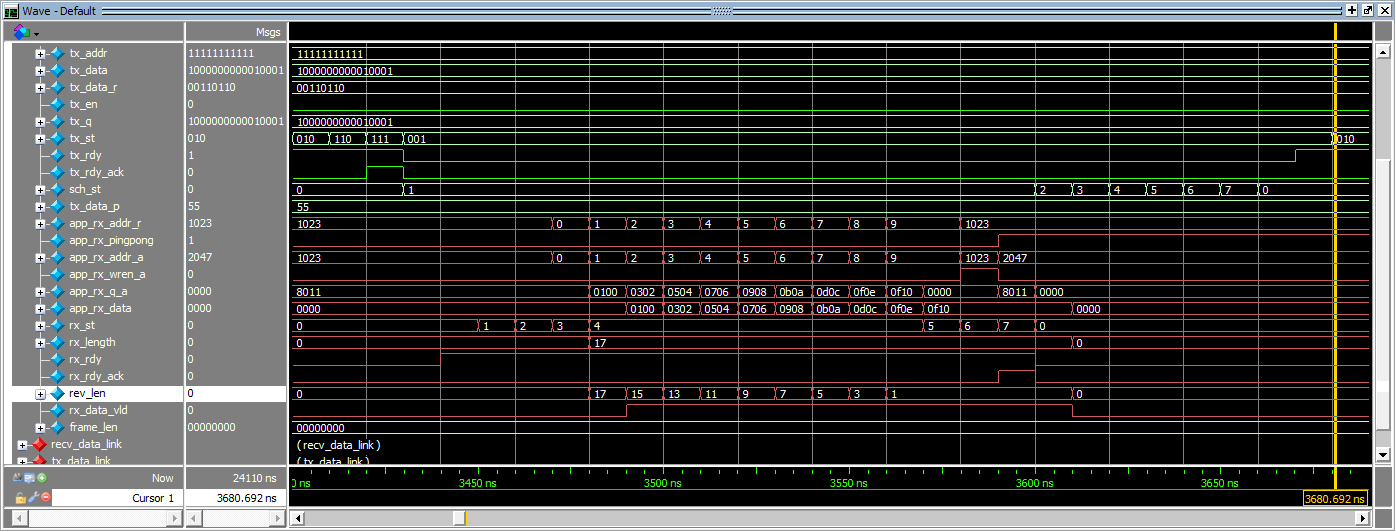

图2-2 观察接收端数据的读取
程序的细节解释请观看对应的视频。
