在上篇文章中，我们讨论并实现了加性/加扰的算法，原理，以及实现方式。在文章中，揭示了算法的实现，设计了利用加扰，解扰演示实例，但是这个演示实例不是非常完善通信工程（目的是演示加扰，解扰的算法）。对于接收端的通讯实现，需要发送端的同步信号，这种方法对于真实的通讯来说，是很难实现的（发送端和接收端都是异步通讯的）。本文中将修改之前的工程，增加preamble + SFD , 实现工程收发同步。 这样，在接收端就可以利用preamble + SFD 所提供的同步信息， 提取出同步字，实现解扰的算法。
仿真工程代码：
`timescale 1 ns / 1 ps
module tb
(
);
parameter SYNC1 = 8'b1010_1010;
parameter SYNC2 = 8'b1010_1011;
parameter PERIOD = 20 ; //周期20
reg pll_rst; //实体模块PLL的rst信号
wire tx_rx; // 收发在testbench的回环信号
wire clk_100M;
wire pll_locked; //实体PLL锁定信号
wire rst = !pll_locked; //Testbench内生成复位信号
reg [ 7: 0 ] tx_data; //待发送数据
wire rx_vld;
wire rx_rdy;
wire [ 7: 0 ] rx_data;
reg inclk ; // 模拟板级提供的输入时钟
reg [ 2: 0 ] tx_st;
initial
begin
inclk = 1'b0;
#( PERIOD / 2 );
forever
#( PERIOD / 2 ) inclk = ~inclk;
end
//always #10 inclk=~inclk;
initial
begin
pll_rst = 1'b1;
tx_data = 0;
#50 pll_rst = 1'b0;
end
wire tx_rdy;
reg tx_vld = 0;
reg tx_en = 0;
reg [5:0] send_cnt = 0;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
tx_en <= 0;
tx_st <= 0;
tx_data <= 0;
end
else
begin
case ( tx_st )
0:
begin
tx_en <= 0;
send_cnt <= 0;
tx_data <= 0;
tx_vld <= 0;
tx_st <= 1;
end
1:
begin
tx_vld <= 1;
tx_st <= 2;
end
2:
begin
if(tx_rdy)
begin
tx_data <= 0;
tx_en <= 1;
send_cnt <= send_cnt + 1;
// if(send_cnt == 7)
tx_st <= 3;
end
end
3:
begin
tx_en <= 0;
if(tx_rdy)
begin
tx_en <= 1;
tx_data <= tx_data + 1;
send_cnt <= send_cnt + 1;
// if ( send_cnt == 23 )
if ( send_cnt == 31 )
begin
send_cnt <= 0;
tx_st <= 7;
end
end
end
6:
begin
if(tx_rdy)
begin
tx_data <= 8'hff;
send_cnt <= send_cnt + 1;
if(send_cnt == 31)
begin
send_cnt <= 0;
tx_st <= 7;
end
end
end
7:
begin
tx_en <= 0;
tx_vld <= 0;
send_cnt <= send_cnt + 1;
if(&send_cnt)
begin
tx_st <= 0;
end
end
default:
tx_st <= 0;
endcase
end
hs_txrx hs_txrx_inst
(
.inclk ( inclk ),
.pll_rst ( pll_rst ),
.tx_data ( tx_data ),
.tx_en ( tx_en ),
.tx_rdy ( tx_rdy ),
.tx_vld ( tx_vld ),
.tx ( tx_rx ),
.rx ( tx_rx ),
.rx_vld ( rx_vld ),
.rx_rdy ( rx_rdy ),
.rx_data ( rx_data ),
.clk_100M ( clk_100M ),
.pll_locked ( pll_locked )
);
endmodule
顶层文件：
module hs_txrx
#(
parameter SCRAMB_SYNC = 15'b000_0000_1010_1001,
parameter SYNC1 = 8'b1010_1010,
parameter SYNC2 = 8'b1010_1011
)
(
input inclk,
input pll_rst,
input [ 7: 0 ] tx_data,
input tx_en,
output tx_rdy,
input tx_vld,
output tx,
input rx,
output rx_rdy,
output rx_vld,
output [ 7: 0 ] rx_data,
output clk_100M,
output pll_locked
);
wire clk_400M;
wire rst = !pll_locked;
trans_data
#(
.SCRAMB_SYNC(SCRAMB_SYNC),
.SYNC1( SYNC1 ),
.SYNC2( SYNC2 )
)
trans_data_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.tx_data ( tx_data ), // 100M的时钟对应的数据
.tx_en ( tx_en ),
.tx_vld ( tx_vld ),
.tx_rdy ( tx_rdy ),
.tx_out ( tx )
);
rev_pcs
#(
.SCRAMB_SYNC( SCRAMB_SYNC ),
.SYNC1( SYNC1 ),
.SYNC2( SYNC2 )
)
recv_pcs_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.clk_400M ( clk_400M ),
.rx_vld ( rx_vld ),
.rx_data ( rx_data ),
.rx_rdy ( rx_rdy ),
.rx ( rx )
);
pll1 pll1_inst
(
.areset ( pll_rst ), //1'b0;
.inclk0 ( inclk ),
.c0 ( clk_10M ),
.c1 ( clk_100M ),
.c2 ( clk_400M ),
.locked ( pll_locked )
);
endmodule
trans_data.v文件：
module trans_data
#(
parameter SCRAMB_SYNC = 15'b000_0000_1010_1001,
parameter SYNC1 = 8'b1010_1010,
parameter SYNC2 = 8'b1010_1011
)
(
input rst,
input clk_100M,
output reg tx_rdy = 0,
input tx_vld,
input tx_en,
input [ 7: 0 ] tx_data, // 100M的时钟对应的数据
output tx_out
);
reg [ 14: 0 ] scrambler;
reg scb_en = 0;
reg [7:0] scb_bit_vector = 0;
integer i;
always@( posedge clk_100M )
if ( ~tx_vld )
begin
scb_bit_vector = 0;
scrambler = SCRAMB_SYNC;
end
else if(scb_en)
begin
for (i = 0; i < 8; i = i + 1) begin
scb_bit_vector[ i ] = scrambler[ 14 ] ^ scrambler[ 13 ];
scrambler = {scrambler[13:0], scb_bit_vector[ i ]};
end
end
reg [7:0] tx_pma_in = 0;
reg tx_pma_en = 0;
wire tx_pma_req;
reg [ 2: 0 ] scb_st;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
scb_st <= 0;
tx_rdy <= 0;
end
else
begin
case ( scb_st )
0:
begin
tx_pma_en <= 0;
tx_rdy <= 1'b0;
tx_pma_in <= SYNC1;
if ( tx_vld)
begin
scb_st <= 1;
end
end
1:
begin
tx_pma_en <= 0;
if(tx_pma_req)
begin
tx_pma_en <= 1;
tx_pma_in <= SYNC1;
scb_st <= 2;
end
end
2:
begin
tx_rdy <= 0;
tx_pma_en <= 0;
if(tx_pma_req)
begin
tx_pma_en <= 1;
tx_pma_in <= SYNC2;
tx_rdy <= 1;
scb_en <= 1;
scb_st <= 3;
end
end
3:
begin
tx_rdy <= 0;
scb_en <= 0;
tx_pma_en <= 0;
if ( tx_pma_req )
begin
tx_pma_en <= 1;
tx_pma_in <= tx_data ^ scb_bit_vector;
scb_en <= 1;
if ( ~tx_vld ) scb_st <= 4;
else tx_rdy <= 1;
end
end
4:
begin
scb_en <= 0;
tx_rdy <= 0;
tx_pma_en <= 0;
if(tx_pma_req)
begin
tx_pma_en <= 1;
tx_pma_in <= SYNC1;
scb_st <= 0;
end
end
default:
scb_st <= 0;
endcase
end
trans_pma
#(
.SCRAMB_SYNC(SCRAMB_SYNC),
.SYNC1 (SYNC1),
.SYNC2 (SYNC2)
)
trans_pma_inst
(
.clk_100M ( clk_100M ),
.tx_pma_en ( tx_pma_en ),
.tx_pma_req ( tx_pma_req ),
.tx_pma_in ( tx_pma_in ),
.tx_out ( tx_out ),
.rst ( rst)
);
endmodule
trans_pma.v
module trans_pma
#(
parameter SCRAMB_SYNC = 15'b000_0000_1010_1001,
parameter SYNC1 = 8'b1010_1010,
parameter SYNC2 = 8'b1010_1011
)
(
input clk_100M,
input tx_pma_en,
output reg tx_pma_req = 0,
input [ 7: 0 ] tx_pma_in, // 100M的时钟对应的数据
output tx_out,
input rst
);
reg [7:0] tx_data_temp;
always@( posedge clk_100M or posedge rst )
if(rst)
tx_data_temp <= 8'b1010_1010;
else if ( tx_pma_en )
tx_data_temp <= tx_pma_in;
reg [7:0] tx_shift;
reg [2:0] tx_cnt = 0;
wire tx_pma_reload = (tx_cnt == 7) ? 1'b1 : 1'b0;
always@( posedge clk_100M or posedge rst )
if(rst)
begin
tx_pma_req <= 0;
tx_shift <= 8'b1010_1010;
tx_cnt <= 0;
end
else
begin
tx_pma_req <= 0;
if ( tx_pma_reload )
begin
tx_pma_req <= 1;
tx_shift <= tx_data_temp;
end
else
tx_shift <= {tx_shift[ 0 ], tx_shift[ 7: 1 ]};
tx_cnt <= tx_cnt + 1;
end
// pmd
IO_TX IO_TX_inst
(
.tx_in ( tx_shift[0] ),
.tx_out ( tx_out )
);
endmodule
rec_pcs.v
module rev_pcs
#(
parameter SCRAMB_SYNC = 15'b000_0000_1010_1001,
parameter SYNC1 = 8'b1010_1010,
parameter SYNC2 = 8'b1010_1011
)
(
input rx,
output reg rx_vld = 0,
output rx_rdy,
output reg [ 7: 0 ] rx_data,
input clk_100M,
input clk_400M,
input rst
);
wire sync;
wire [7:0] rx_data_scb ;
reg [ 14: 0 ] scrambler;
wire scb_en;
reg [7:0] scb_bit_vector = 0;
integer i;
always@( posedge clk_100M )
if ( ~sync )
begin
scb_bit_vector = 0;
scrambler = SCRAMB_SYNC;
end
else if(scb_en)
begin
for (i = 0; i < 8; i = i + 1) begin
scb_bit_vector[ i ] = scrambler[ 14 ] ^ scrambler[ 13 ];
scrambler = {scrambler[13:0], scb_bit_vector[ i ]};
end
end
recv_data
#(
.SYNC1( SYNC1 ),
.SYNC2( SYNC2 )
)
recv_data_inst
(
.rst ( rst ),
.clk_100M ( clk_100M ),
.clk_400M ( clk_400M ),
.sync ( sync ),
.rx ( rx ),
.rx_data_100Mr ( rx_data_scb ),
.rx_data_vld_100Mr( scb_en )
);
reg [1:0] rx_vld_r = 0;
always @ (posedge clk_100M)
begin
rx_vld_r <= {rx_vld_r[0], scb_en};
end
always @ (posedge clk_100M)
if(rx_vld_r[0])
begin
rx_data = rx_data_scb ^ scb_bit_vector;
end
always @ (posedge clk_100M)
if(sync) rx_vld <= 1;
else if(rx_rdy) rx_vld <= 0;
assign rx_rdy = rx_vld_r[1];
endmodule
recv_data.v
module recv_data
#(
parameter SYNC1 = 8'b1010_1010,
parameter SYNC2 = 8'b1010_1011
)
(
input rst,
input clk_100M,
input clk_400M,
input rx,
output reg sync = 0,
output reg[ 7: 0 ] rx_data_100Mr,
output reg rx_data_vld_100Mr
);
wire rx_bit;
wire rx_bit_vld;
reg [ 3: 0 ] bit_count;
reg [ 7: 0 ] bit_sft;
reg [ 7: 0 ] sync_shift = 0;
reg fr_sync1, fr_sync2;
reg fr_sync;
always @ (posedge clk_100M)
sync <= fr_sync;
reg fr_end;
reg [ 7: 0 ] fr_count;
reg[ 7: 0 ] rx_data;
reg rx_data_vld_tmp;
always@( posedge clk_400M or posedge rst )
if ( rst )
begin
rx_data <= 0;
rx_data_vld_tmp <= 0;
bit_count <= 0;
bit_sft <= 0;
fr_sync1 <= 0;
fr_sync2 <= 0;
fr_sync <= 0;
fr_end <= 0;
fr_count <= 0;
end
else
begin
if ( rx_bit_vld )
begin
bit_sft <= { rx_bit, bit_sft[ 7: 1 ]};
sync_shift <= { bit_sft[ 0 ], sync_shift[ 7: 1] };
end
if ( fr_sync )
fr_sync2 <= 1'b0;
else if ( bit_sft == SYNC2 )
fr_sync2 <= 1'b1; //fr----frame
else
fr_sync2 <= 1'b0;
if ( fr_sync )
fr_sync1 <= 1'b0;
else if ( sync_shift == SYNC1 )
fr_sync1 <= 1'b1;
else
fr_sync1 <= 1'b0;
if ( fr_end )
fr_sync <= 1'b0;
else if ( fr_sync1 & fr_sync2 & rx_bit_vld )
fr_sync <= 1'b1;
if ( fr_sync )
begin
if ( rx_bit_vld )
begin
if ( bit_count == 7 )
bit_count <= 0;
else
bit_count <= bit_count + 1;
end
end
rx_data_vld_tmp <= 0;
if ( bit_count == 7 )
begin
rx_data <= bit_sft;
rx_data_vld_tmp <= 1'b1;
end
fr_end <= 1'b0;
if ( rx_data_vld_tmp & rx_bit_vld )
if ( fr_count == 31 )
begin
fr_end <= 1'b1;
fr_count <= 0;
end
else
fr_count <= fr_count + 1;
end
wire rx_data_vld = rx_data_vld_tmp & rx_bit_vld;
reg rx_data_vld_r;
reg [ 5: 0 ] count_400M;
reg rx_data_vld_x;
reg nrx_data_vld_x;
reg rx_data_vld_xrg;
always@( posedge clk_400M or posedge rst )
if ( rst )
begin
count_400M <= 0;
rx_data_vld_r <= 0;
end
else
begin
if ( rx_data_vld )
rx_data_vld_r <= 1'b1;
else if ( count_400M == 15 )
rx_data_vld_r <= 1'b0;
if ( count_400M == 15 )
count_400M <= 0;
else if ( rx_data_vld_r )
count_400M <= count_400M + 1;
end
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_data_vld_x <= 1'b0;
nrx_data_vld_x <= 1'b1;
rx_data_vld_xrg <= 1'b0;
rx_data_100Mr <= 0;
rx_data_vld_100Mr <= 1'b0;
// rx_data_vld_100Mrr <= 1'b0;
end
else
begin
rx_data_vld_x <= rx_data_vld_r;
nrx_data_vld_x <= !rx_data_vld_x;
rx_data_vld_xrg <= nrx_data_vld_x & rx_data_vld_x;
rx_data_vld_100Mr <= 1'b0;
if ( rx_data_vld_xrg )
begin
rx_data_100Mr <= rx_data;
rx_data_vld_100Mr <= 1'b1;
end
end
recv_bit recv_bit_inst
(
.rst ( rst ),
.clk_400M ( clk_400M ),
.rx ( rx ),
.rx_bit ( rx_bit ),
.rx_bit_vld ( rx_bit_vld )
);
endmodule
仿真结果:

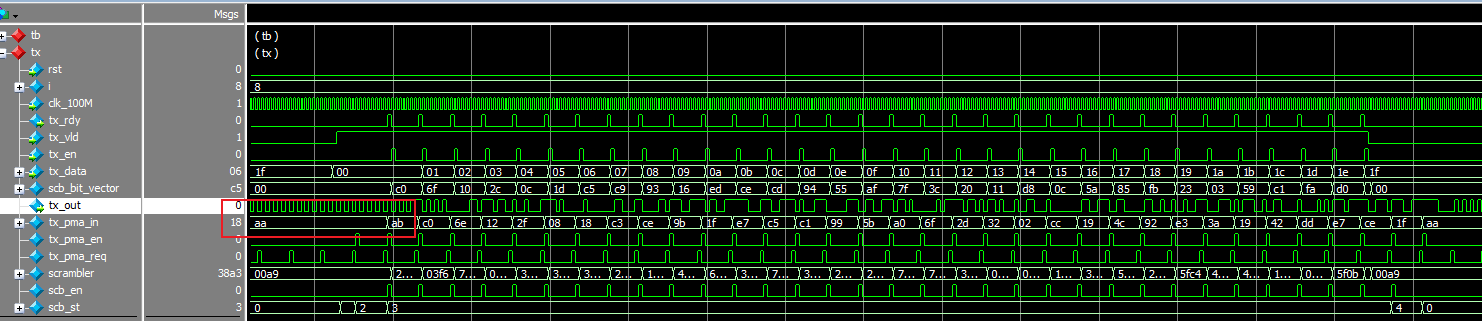

图1
仿真程序中发送数据 8’h00, 8’h01, 8’h02, ….. 8’h1f ， 接收端可以正常接收到8’h00, 8’h01, 8’h02, …. 8’h1f。

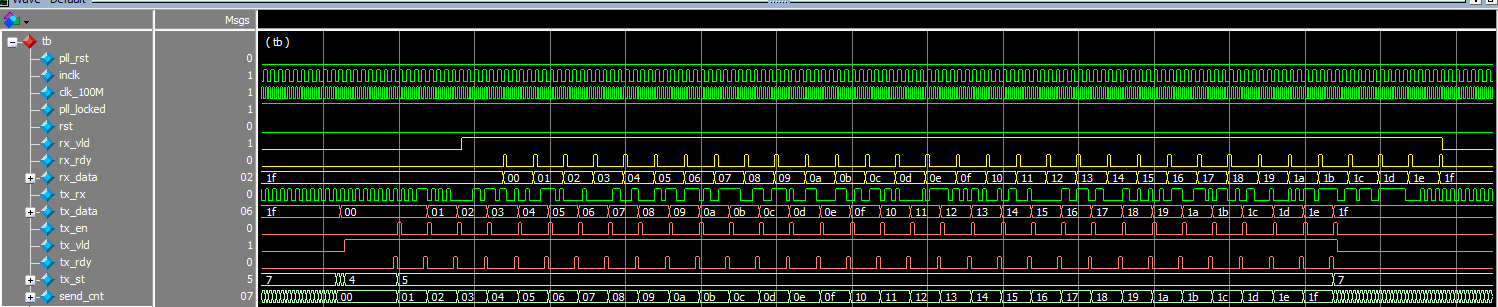

图2
图3
tx_pma_reload 将tx_data_temp （之前锁存的数据）装载到tx_shift 中， 同时发送tx_pma_req 请求下一个数据，只要下一个数据在reload之前准备好就可以了， 这样就给上层程序预留了很多时间（有一定的弹性）。
quartus 代码
[contend_control]
[/contend_control]
关于程序的更多讲解， 请参照视频文件。
老师，里面有个for循环，for i=0，i<8 , i = i + 1;为什么一个clk沿，i可以从0到7，不是应该每个clk只加1吗？
