Verilog 语法练习(2) 向量

1.

构建有一个 3-bit input的电路,然后根据下图输出一个2-bit的向量,和三个单独的 1-bit输出。注意在下图中,旁边带有数字的刻度线表示向量的宽度。





module top_module (
    input wire [2:0] in,
    output wire [1:0] out1,
    output wire out0,
    output wire out2,
    output wire out3  );

//使用assign语句实现

endmodule



2.

构建一个组合电路,将输入的32位输入( [31:0] )分成两个16-bit的高位输出[31:16] 和低位输出[15:0]。

module top_module(
    input wire [31:0] in,
    output wire [15:0] out_hi,
    output wire [15:0] out_lo );

//使用assign语句实现
endmodule



3.

交换一个32位输入的端序,并输出。比如输入向量是大端,输出的向量应该为小端;如果输入的向量是小端,输出的向量应该为大端,比如:

out [31:0]                                                                                in[31:0]

AaaaaaaaBbbbbbbbCcccccccDddddddd => DdddddddCcccccccBbbbbbbbAaaaaaaa
module top_module(
    input [31:0] in,
    output [31:0] out );

//使用assign语句实现

endmodule



4.

对输入向量a和b分别作按位操作或(bitwise OR)和逻辑或(logical OR),a和b按位取反(bitwise inverse )和a逻辑否定(取非)的结果输出。

module top_module(
    input [2:0] a,
    input [2:0] b,
    output [2:0] or_bitwise,
    output or_logical,
    output [2:0] not_a,
    output [2:0] not_b,
    output logical_not_a
);

//使用assign语句实现

endmodule



5.

对一个有四个输入的组合电路,in[3:0]。

输出:

out_and:四个输入相与的输出。
out_or:四个输入相或的输出。
out_xor:四个输入相异或的输出。

module top_module(
    input [3:0] in,
    output out_and,
    output out_or,
    output out_xor
);

//使用assign语句实现

endmodule



6.

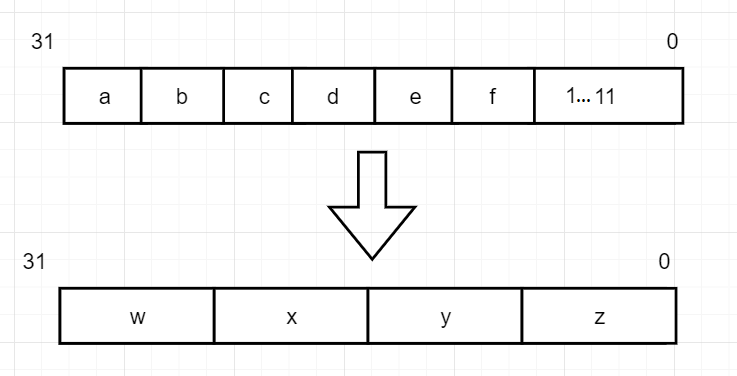

位拼接操作符练习:下图中a,b,c,d,e,f都是4-bit的输入,最后在剩余的位数上补1。w,x,y,z都是8-bit输出向量。要求将给定的输入向量连接在一起,



module top_module (
    input [3:0] a, b, c, d, e, f,
    output [7:0] w, x, y, z );

//assign {... } = { ...};

endmodule



7.

使用位拼接操作符将8-bit输入向量a颠倒每一位的顺序。比如:a为8’b10011111,颠倒位序后应该为8’b11111001。

module top_module(
    input [7:0] a,
    output [7:0] b
);

//使用assign语句实现

endmodule



8.

使用位拼接运算符,将8-bit有符号数输入向量a,转换为32-bit有符号向量b。注意符号位的扩展。

module top_module (
    input [7:0] a,
    output [31:0] b );

//    assign b = {...};

endmodule



9.

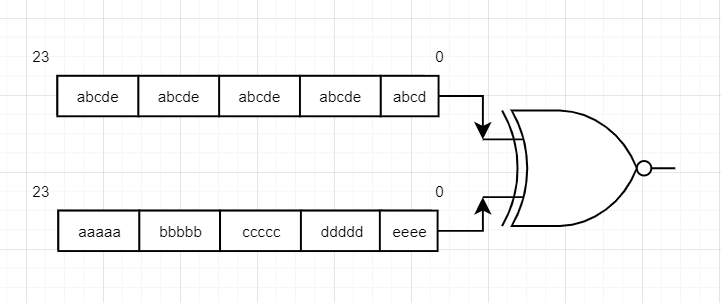

将下图由拼接和复制5个输入创建的两个向量的同或(XNOR)结果输出到out。



module top_module (
    input a, b, c, d, e,
    output [23:0] out );

    //输出是通过拼接和复制5个输入创建的两个向量的同或(XNOR)结果。
    //assign out = { ... } ~^ { ... };

endmodule
